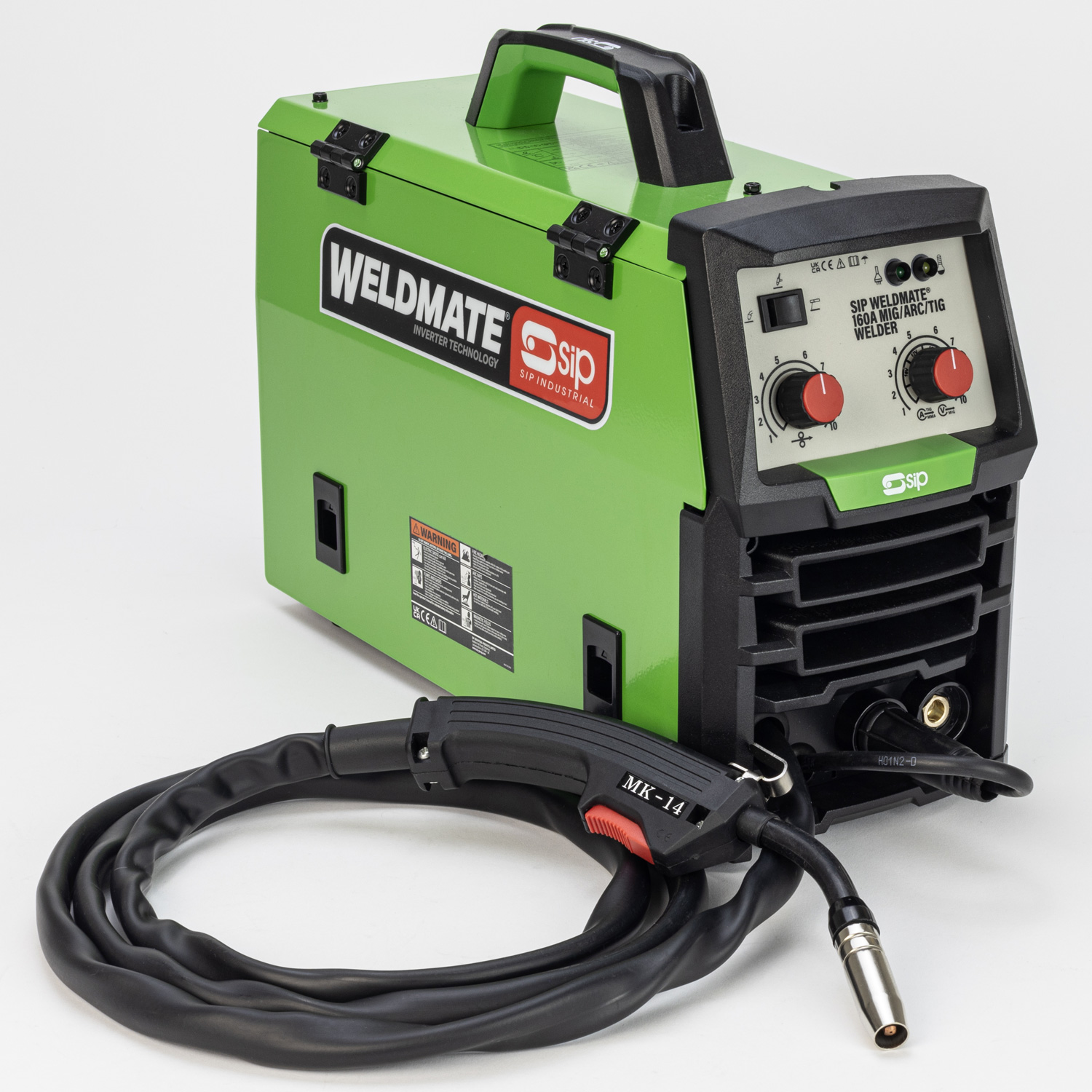

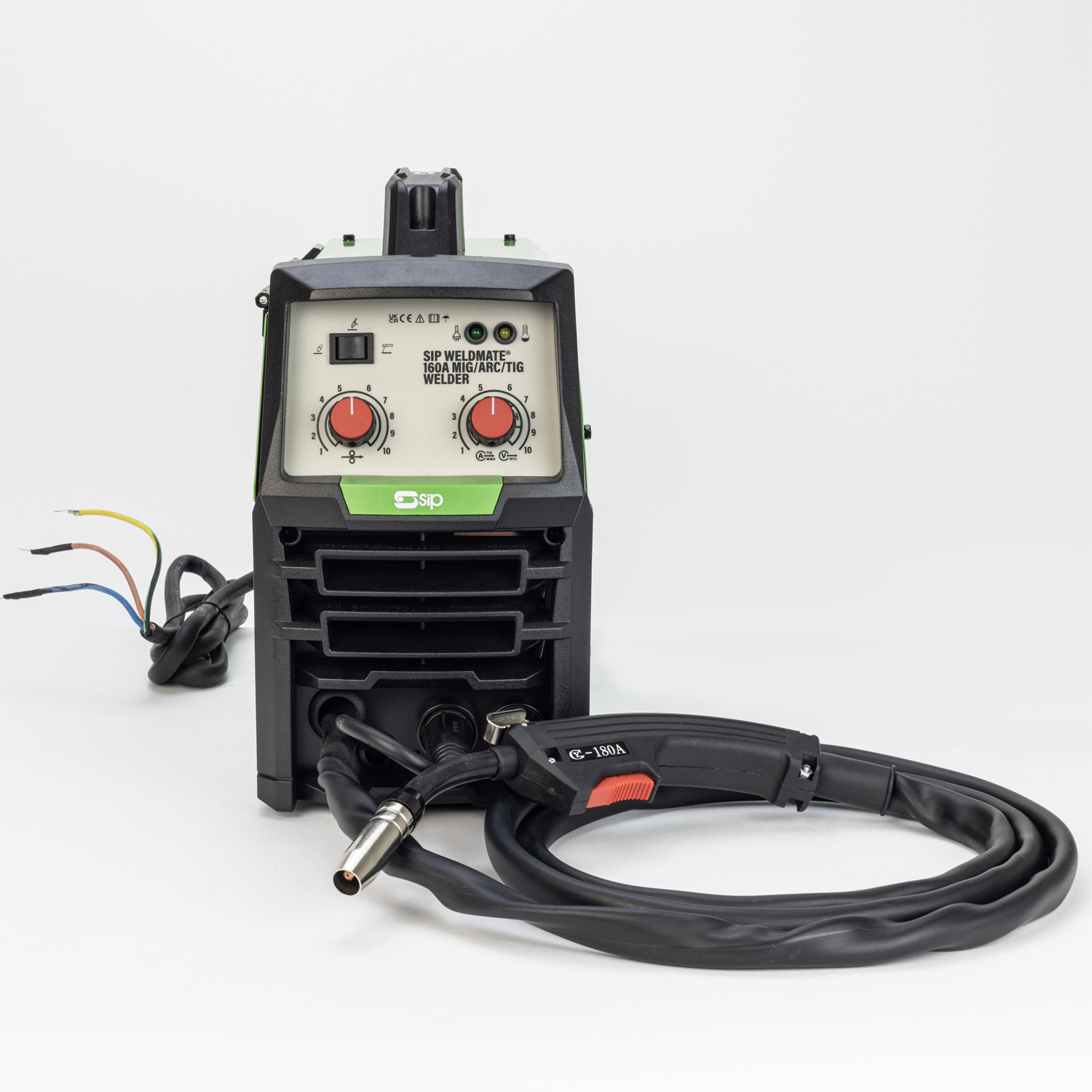

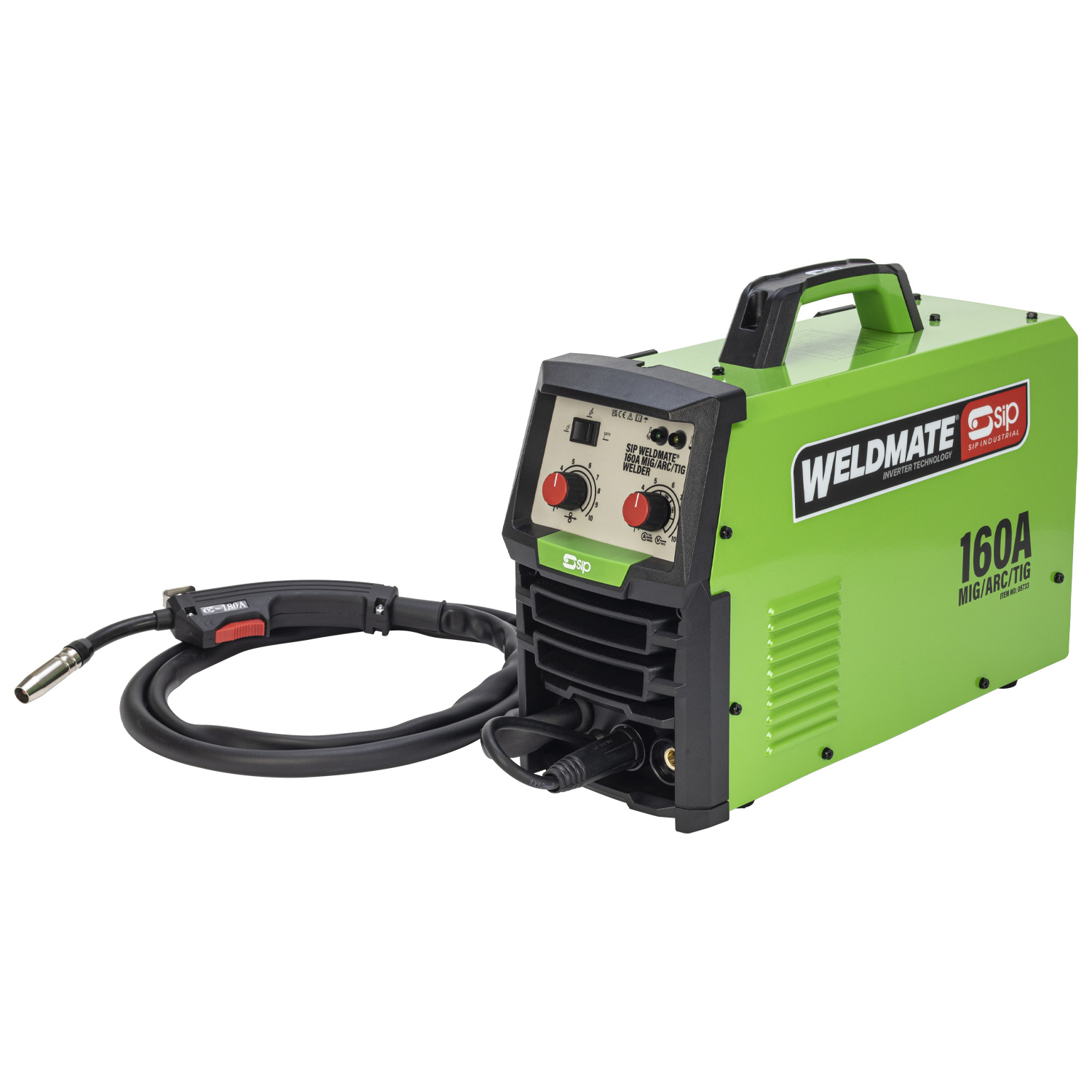

SIP WELDMATE® 160A MIG Inverter Welder
Brand: SIPThe SIP WELDMATE® 160A MIG/ARC/TIG Inverter Welder is a multi-process inverter welder specifically designed for entry level users and small workshop applications. Supplied with all accessories needed to gasless MIG weld straight from the box, this multi-purpose welder operates from a 16A supply. Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs. KEY FEATURES • Multi-process MIG/ARC/TIG welder for greater flexibility • Also performs gasless MIG welding for added versatility • All accessories supplied to gasless MIG weld straight from the box • Fully compliant with EU 2019/1784 (Eco Design for Welding Equipment) • Infinitely variable dial for smoother stepless output adjustment • Compact and portable design for mobility around work area
Specifications
Description
The SIP WELDMATE® 160A MIG/ARC/TIG Inverter Welder is a multi-process inverter welder specifically designed for entry level users and small workshop applications.
Supplied with all accessories needed to gasless MIG weld straight from the box, this multi-purpose welder operates from a 16A supply.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Applications & uses: Perfect for entry level users and small workshop applications. Suitable for MIG/ARC/TIG welding. Performs gasless MIG welding. Ideal for mild steels and *stainless steel. *Using stainless steel welding wire.
What's in the box?: 1x SIP WELDMATE® 160A MIG/ARC/TIG Inverter Welder (230v/16A), 1x 2mtr integrated MIG torch, 1x 3mtr electrode lead, 1x 3mtr earth lead, 1x 3mtr gas hose with clamps, 1x 0.7kg flux-cored wire reel, 2x feed rollers, 2x contact tips, 1x torch spanner, 1x chipping hammer/brush and 1x face shield. TIG torch sold separately (Item 08206A recommended).
- MULTI-PROCESS MIG/ARC/TIG WELDER FOR GREATER FLEXIBILITY AT HIGH DUTY CYCLES: Duty cycle @ 40°C; 160A @ 15% (MIG) / 140A @ 15% (ARC/TIG). Performs gasless MIG welding for added versatility.

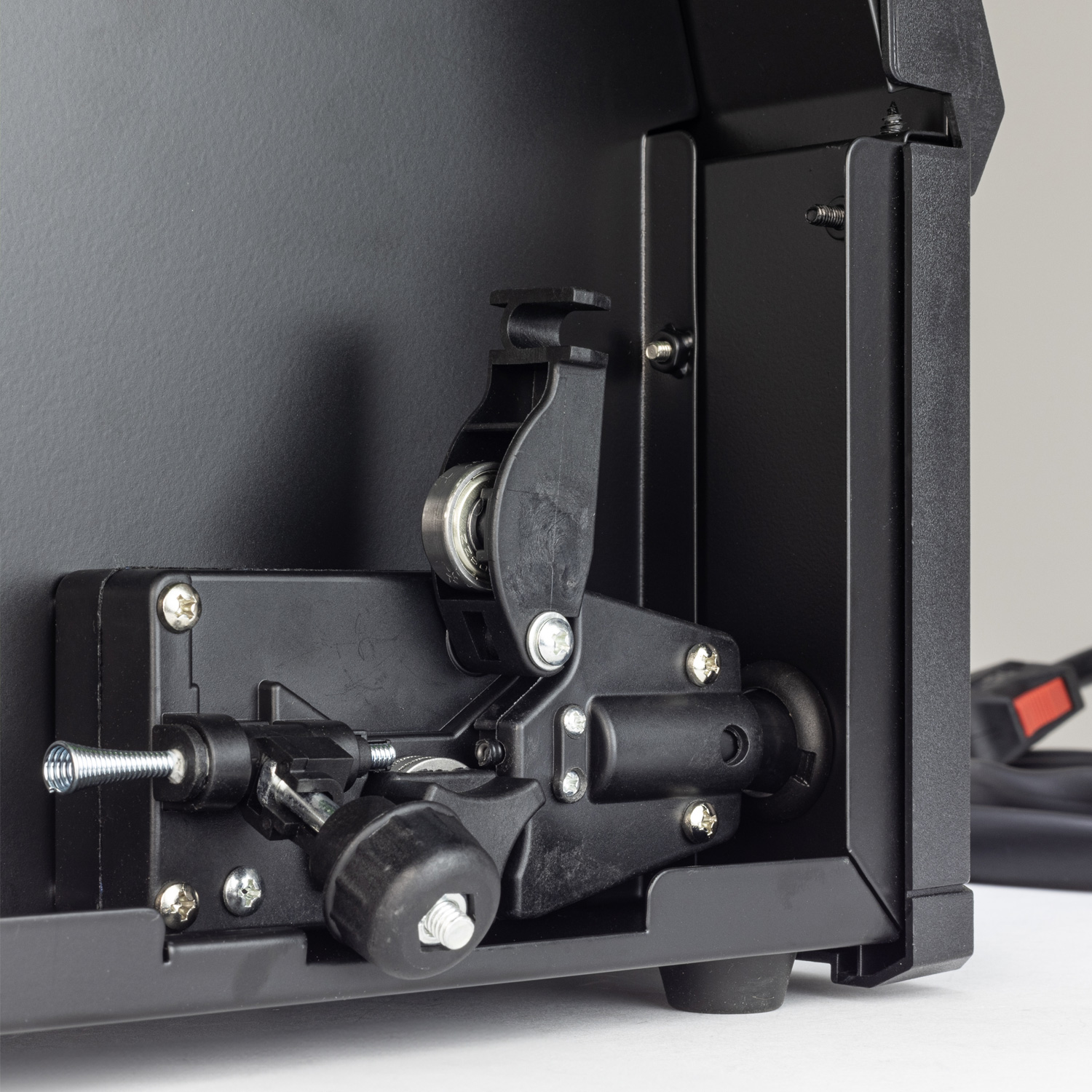

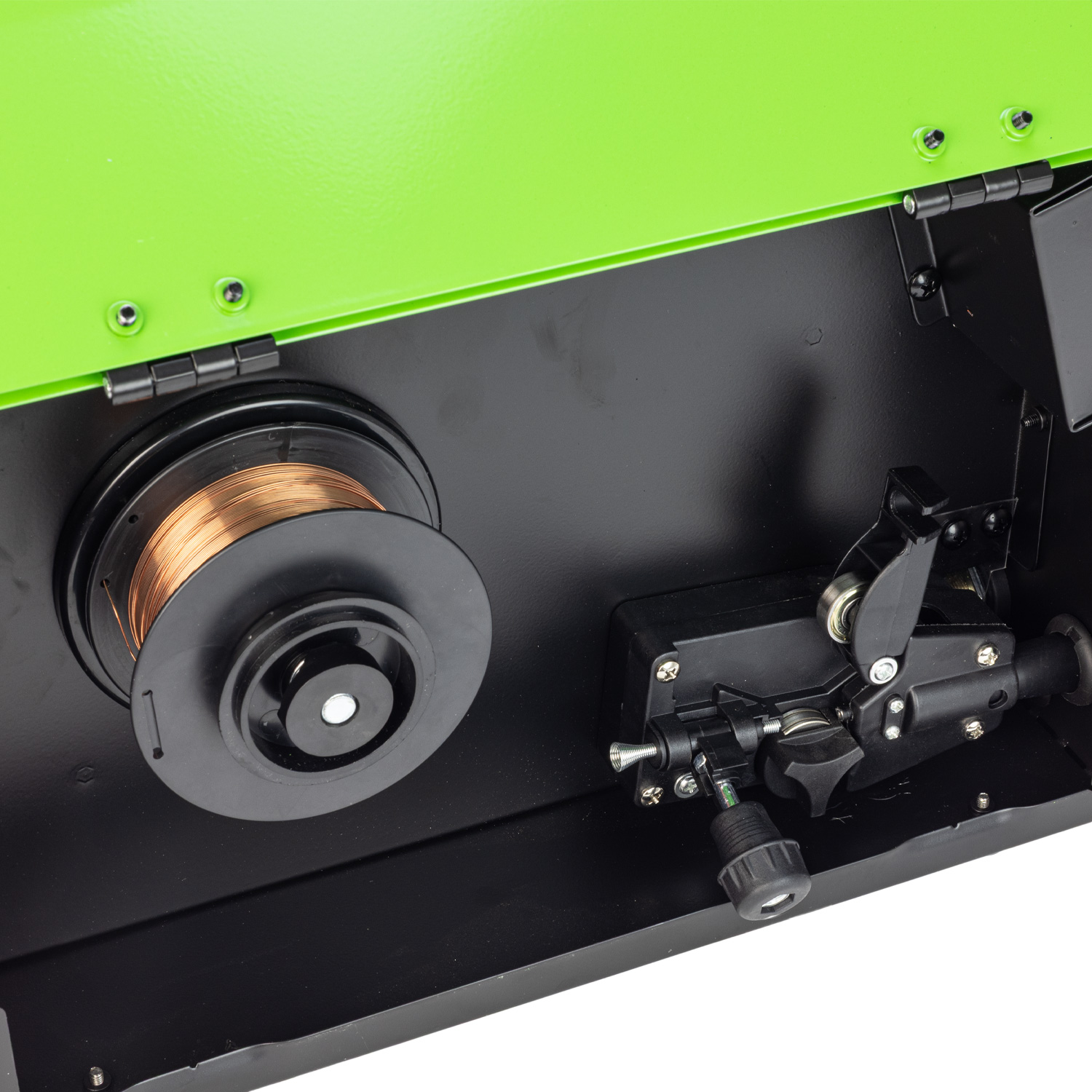

- DURABLE WIRE FEEDER ENSURES SMOOTH & CONSISTENT FLOW OF WIRE TO MIG TORCH: This easy-to-use device includes tension adjustment to maintain optimal performance. Supplied with interchangeable feed rollers for solid and flux-cored wire. Compatible with 0.7kg and 5kg welding wire spools.

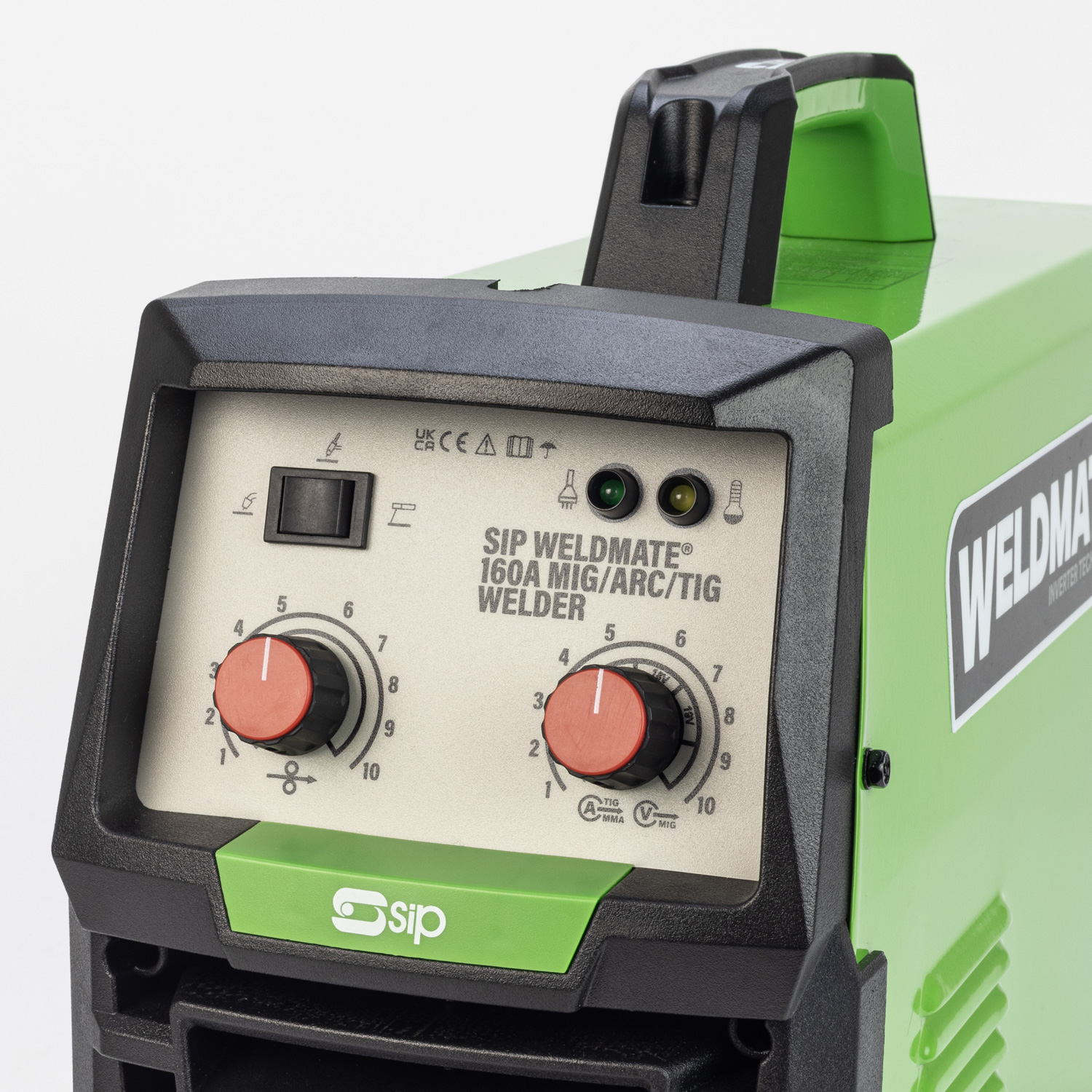

- INTUITIVE CONTROL PANEL TO SELECT BETWEEN WELDING PROCESSES: Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easily controlled welding.

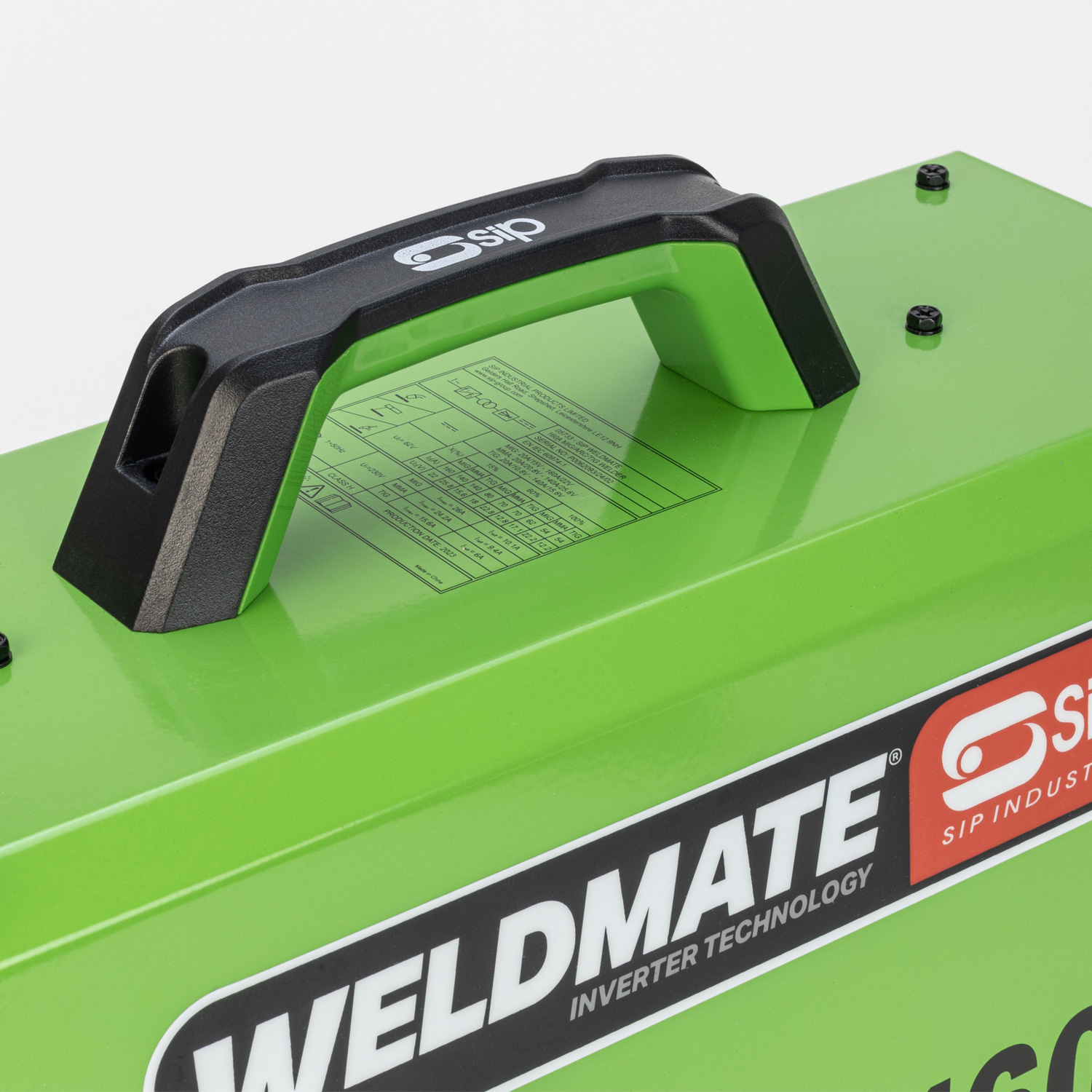

- METAL CASING WITH HEAVY-DUTY CARRY HANDLE FOR LONG LIFE USE: High-quality finish is resistant to work area damage and aids mobility.
- COMPACT & PORTABLE DESIGN FOR MOBILITY AROUND THE WORK AREA: The compact unit is easy to move between locations using the fitted carry handle.
- COMPATIBLE WITH SIP WELDING CART FOR ADDED MOBILITY: Compatible with the 05714 SIP 3-Tier Welding Cart, suitable for gas cylinders up to 50kg.
- SIP 2-YEAR STANDARD SILVER WARRANTY*
Technical Specification
- ITEM NO. 05733
- Input Supply: 230v (16A)
- Output Voltage: 15v - 22v (MIG) / 20.8v - 25.6v (ARC) / 10.8v - 15.6v (TIG)
- Output Current: 20A - 160A (MIG) / 20A - 140A (ARC) / 20A - 140A (TIG)
- Duty Cycle @ 40°C: 160A @ 15% (MIG) / 140A @ 15% (ARC) / 140A @ 15% (TIG)
- Wire Diameter: ? 0.8mm - 0.9mm
- Wire Spool Size: 0.7kg, 5kg
- Welding Material Thickness: 0.8mm - 5.5mm (mild steel)
- Protection / Insulation 21S / H
