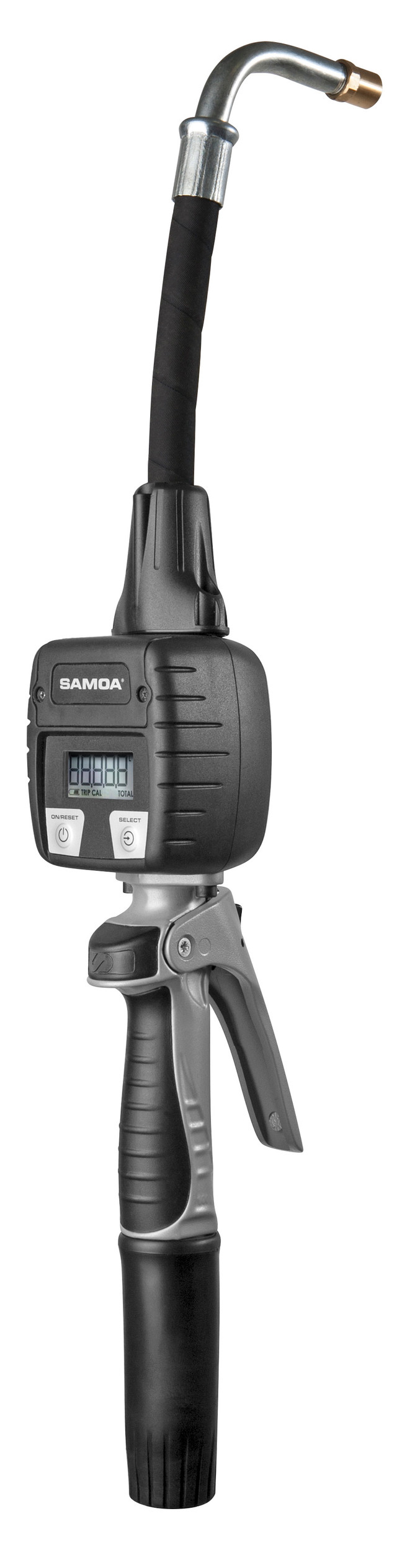

SAMOA EC30 Metered Control Valve with flexible outlet with 90° angled nozzle with automatic non-drip tip - 30 litre/min

SAMOA metered control valves are used at end of hose assembly to dispense lubricants and antifreeze solutions.

Fluids handled:

• Synthetic and mineral based lubricants
• Gear oil
• Hydraulic oil and fluids
• ATF
• Antifreeze solutions

Durability & Performance:

• Extensively and rigorously field tested. Reliable performance.
• High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
• Sealed battery compartment and isolated electronic register for extended life.
• Easy to read large character display, with batch trip (resettable totaliser) and totaliser functions.
• Rough TPE boot surrounds the entire meter for even greater durablity.
• Replaceable AAA batteries.
• Aluminium body with light weight ergonomic design.  Soft grip valve for comfort.
• Cam and piston valve design for minimum flow resistance.
• Large inlet swivel and inlet filter.
• Swivel and outlet covers.
• Safety latch must be depressed before product can be dispensed.  Trigger can be locked open for dispensing large volumes.
• Other outlets available.
