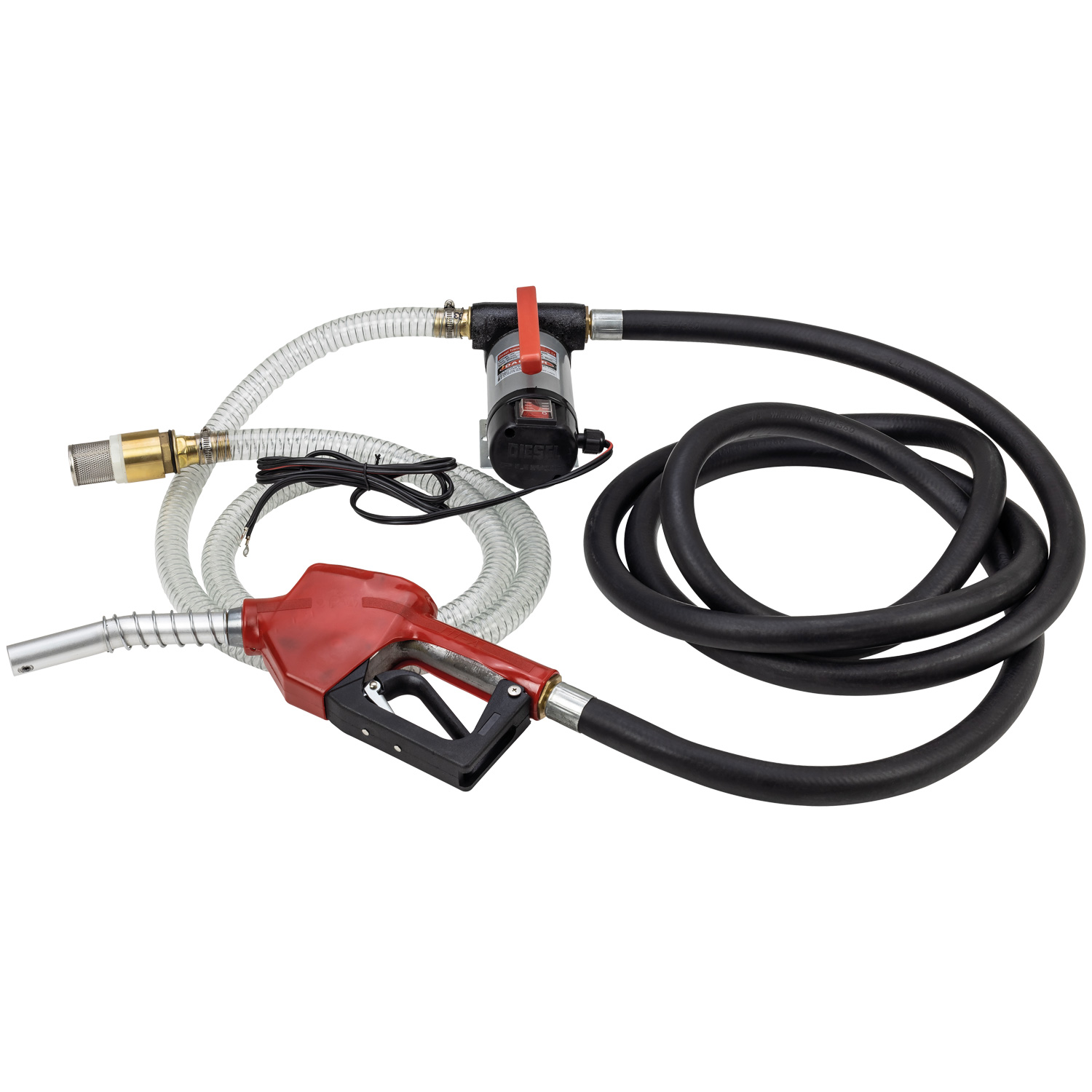

SIP 24v Diesel Transfer Pump

Brand: SIP
The SIP 24v Diesel Transfer Pump is a robust electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality long-lasting fuel dispenser has a 10mtr pumping head and 2mtr suction head for versatility and speed-of-use. This compact and lightweight fuel transfer pump is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery. KEY FEATURES • Compact and lightweight design for portability • Powerful 160w DC motor with copper-wound armatures • High-quality aluminium nozzle for added durability • Supplied with non-return valve to aid self-priming • Built-in bypass system for start and stop operation • 10mtr pumping head and 2mtr suction head

Specifications

Motor:

HP: 0.21 KW: 0.16

Weight: 7Kg

Length: 325mm

Width: 355mm

Height: 205mm

Volts: 24V

Pack Size: 1

Description

The SIP 24v Diesel Transfer Pump is a robust electric diesel transfer pump developed for safe dispensing of diesel and fuel oils. This high-quality long-lasting fuel dispenser has a 10mtr pumping head and 2mtr suction head for versatility and speed-of-use.

This compact and lightweight fuel transfer pump is ideal for a variety of applications including the easy refuelling of vehicles, fleets and other industrial machinery.

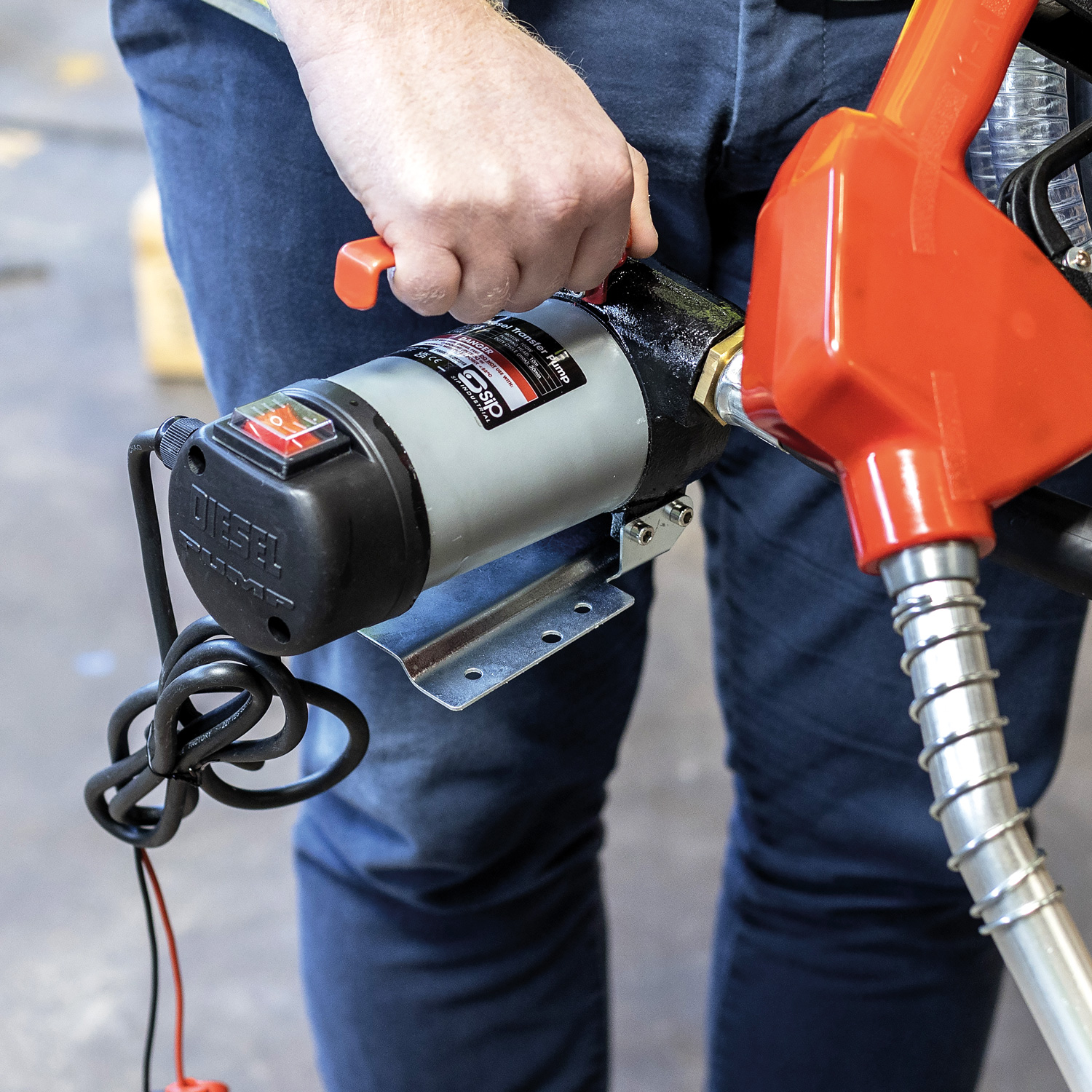

Compact and lightweight design for portability
Powerful 160w DC motor with copper-wound armatures
High-quality aluminium nozzle for added durability

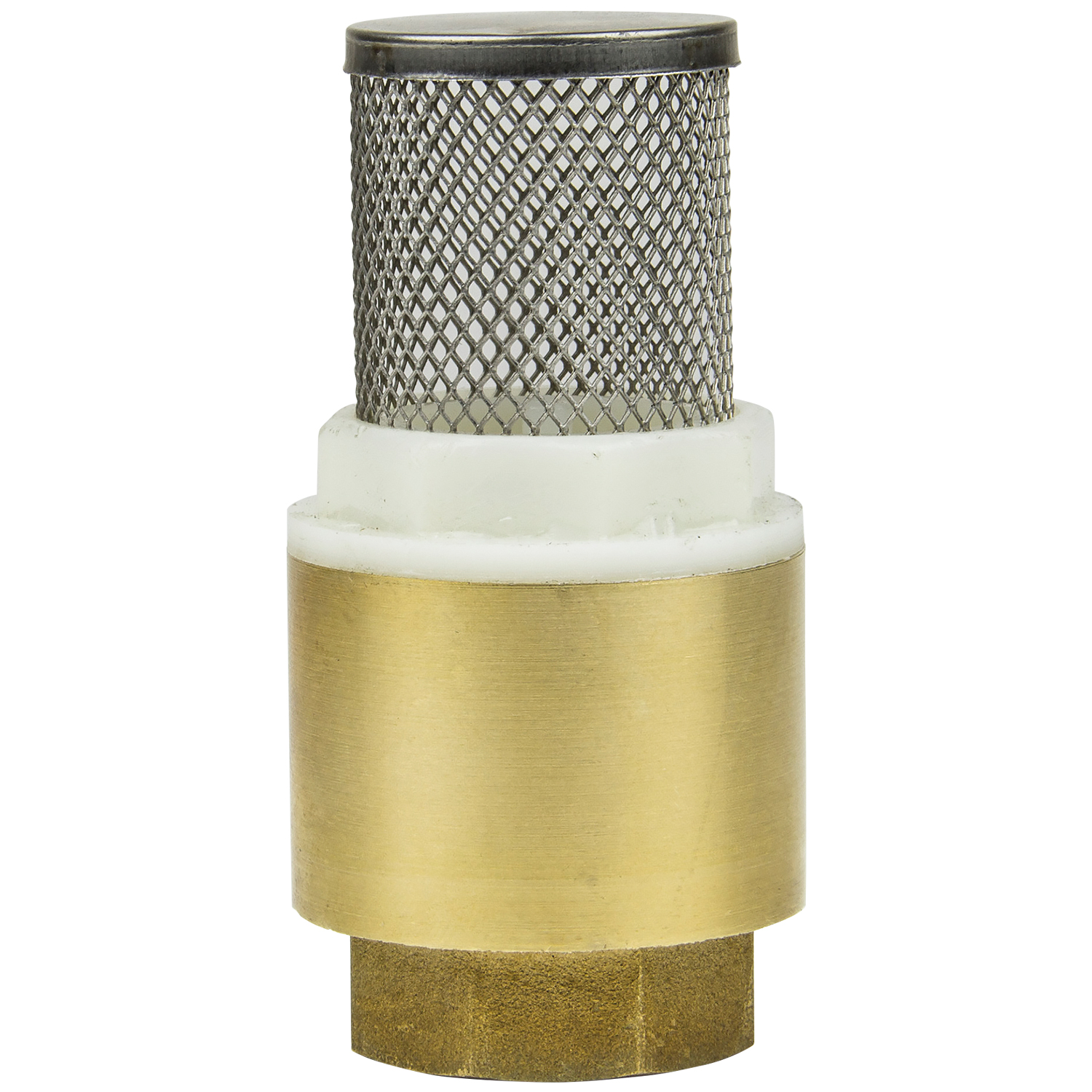

Supplied with non-return valve to aid self-priming
Built-in bypass system for start and stop operation
10mtr pumping head and 2mtr suction head
40ltr/min flow rate for easy operation
High-quality delivery and suction hoses
SIP 2-Year Standard Silver Warranty

Technical Specification

ITEM NO. 06803
Input Voltage: 24v DC
Motor Power: 160w
Max. Pumping Head: 10mtr
Max. Flow Rate: 40ltr/min
Speed: 3200rpm
Max. Working Pressure: 15psi (1bar)
Duty Cycle: 30min
Connection: 3/4" BSP
Protection: IPX4
Suction Hose Length: 2mtr
Delivery Hose Length: 4mtr

Price: £239.99

EAN Code: 5012713068036

Part Number: 06803
